猿人小何

容器化部署FastDFS服务

2019/12/03

FastDFS是一个开源的轻量级分布式文件系统.

基础镜像

选择season/fastdfs:1.2, season/fastdfs:latest不带nginx

docker pull season/fastdfs:1.2

创建跟踪服务器(Tracker Server)

docker run -it -d --name trakcer -v /fastdfs/tracker/data:/fastdfs/tracker/data --net=host season/fastdfs:1.2 tracker

默认启动22122端口，挂载文件目录，使用共享主机模式。

创建存储服务器(Storage Server)

docker run -it --name storage -v /fastdfs/storage/data:/fastdfs/storage/data -v /fastdfs/store_path:/fastdfs/store_path --net=host -e TRACKER_SERVER:宿主机IP:22122 season/fastdfs:1.2 storage

启动后需要修改容器内的文件

docker cp storage:/fdfs_conf/storage.conf ./

修改

base_path=/fastdfs/storage
store_path0=/fastdfs/store_path
tracker_server=宿主机IP:22122

拷贝回去

docker cp ./storage.conf storage:/fdfs_conf/storage.conf

重启容器，出现如下日志表示成功


部署nginx

docker run --name fastdfs-nginx -v /fastdfs/fastdfs-nginx/mod_fastdfs.conf:/fastdfs-nginx-module/src/mod_fastdfs.conf -v /fastdfs/fastdfs-nginx/nginx.conf:/etc/nginx/conf/nginx.conf -v /fastdfs/store_path:/fastdfs/store_path --net=host -e TRACKER_SERVER:宿主机IP:22122 season/fastdfs:1.2 nginx

出现如下提示


修改nginx配置nginx.conf

server {
    listen       8888;
    server_name  localhost;

    #charset koi8-r;

    #access_log  logs/host.access.log  main;

    location /group1/M00 {
        root /fastdfs/store_path/data;
        ngx_fastdfs_module;
    }

    #error_page  404              /404.html;

    # redirect server error pages to the static page /50x.html
    #
    error_page   500 502 503 504  /50x.html;
    location = /50x.html {
        root   html;
    }
}

修改fastfdfs-nginx-module配置mod_fastdfs.conf

tracker_server=宿主机IP:22122
url_have_group_name=true
store_path0=/fastdfs/store_path

重启nginx

docker exec -it fastdfs-nginx bash -c 'cp /fastdfs-nginx-module/src/mod_fastdfs.conf /etc/fdfs/mod_fastdfs.conf && /etc/nginx/sbin/nginx -s reload'

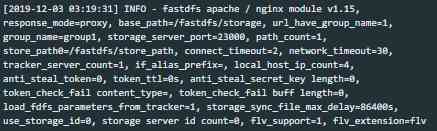

出现如下日志表示成功
